APD12N0.2-0.1-C0-P高压DC-DC电源模块SDS

发布时间：2024-08-07 09:46:32     浏览：704

　　APD系列高压DC-DC转换器是一款专为PCB安装设计的超紧凑、调节型电源模块。它以微型化、轻量化和低噪声为特点，支持灵活的输出电压选项(0至200V、300V、400V或500Vdc)，并兼容5V或12Vdc的输入电压。该转换器不仅提供卓越的线路和负载调节性能，还具备低纹波、短路和电弧保护功能，并可选择电压监测和禁用模式。其高频开关设计确保无噪声操作，非常适合精密和高要求的应用环境。

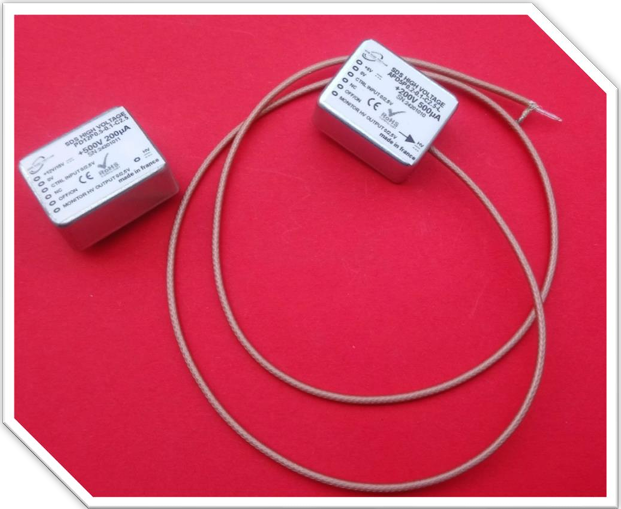

APD12N0.2-0.1-C0-P高压DC-DC电源模块SDS

　　包装配置:

　　- 外壳材质：锡钢板，内部接地

　　- 外壳尺寸：25.5mm长 x 20mm宽 x 11mm高(详见机械图)

　　- 引脚规格：0.63mm方形引脚

　　- 引线选项：同轴电缆RG178B/U，直径2mm，长度50cm

　　- 重量：约13克

　　- 绝缘：UL认证的环氧树脂全密封

型号：

AP series selection chart
Vout/lout





200Vdc/
500μA		VinPolarityOutput styleREF 2.5V#Ordering references
12Vdc
PinNo#1APD12N0.2-0.1-C0-P
Yes#2APD12N0.2-0.1-C2.5-P
Coaxial cableNo#3APD12N0.2-0.1-C0-L
Yes#4APD12N0.2-0.1-C2.5-L
十PinNo#5APD12P0.2-0.1-C0-P
Yes#6APD12P0.2-0.1-C2.5-P
Coaxial cableNo#7APD12P0.2-0.1-C0-L
Yes#8APD12P0.2-0.1-C2.5-L
5Vdc
PinNo#9APD5N0.2-0.1-C0-P
Yes#10APD5N0.2-0.1-C2.5-P
Coaxial cableNo#11APD5N0.2-0.1-C0-L
Yes#12APD5N0.2-0.1-C2.5-L
十PinNo#13APD5P0.2-0.1-C0-P
Yes#14APD5P0.2-0.1-C2.5-P
Coaxial cableNo#15APD5P0.2-0.1-C0-L
Yes#16APD5P0.2-0.1-C2.5-L
300Vdc/
330μA		12Vdc
PinNo#17APD12N0.3-0.1-C0-P
Yes#18APD12N0.3-0.1-C2.5-P
Coaxial cableNo#19APD12N0.3-0.1-C0-L
Yes#20APD12N0.3-0.1-C2.5-L
十PinNo#21APD12P0.3-0.1-C0-P
Yes#22APD12P0.3-0.1-C2.5-P
Coaxial cableNo#23APD12P0.3-0.1-C0-L
Yes#24APD12P0.3-0.1-C2.5-L
5Vdc
PinNo#25APD5N0.3-0.1-C0-P
Yes#26APD5N0.3-0.1-C2.5-P
Coaxial cableNo#27APD5N0.3-0.1-C0-L
Yes#28APD5N0.3-0.1-C2.5-L
十PinNo#29APD5P0.3-0.1-C0-P
Yes#30APD5P0.3-0.1-C2.5-P
Coaxial cableNo#31APD5P0.3-0.1-C0-L
Yes#32APD5P0.3-0.1-C2.5-L
400Vdc/
250μA		12Vdc
PinNo#33APD12N0.4-0.1-C0-P
Yes#34APD12N0.4-0.1-C2.5-P
Coaxial cableNo#35APD12N0.4-0.1-C0-L
Yes#36APD12N0.4-0.1-C2.5-L

PinNo#37APD12P0.4-0.1-C0-P


十
Yes#38APD12P0.4-0.1-C2.5-P
Coaxial cableNo#39APD12P0.4-0.1-C0-L
Yes#40APD12P0.4-0.1-C2.5-L
5Vdc
PinNo#41APD5N0.4-0.1-C0-P
Yes#42APD5N0.4-0.1-2.5-P
Coaxial cableNo#43APD5N0.4-0.1-C0-L
Yes#44APD5N0.4-0.1-C2.5-L
十PinNo#45APD5P0.4-0.1-C0-P
Yes#46APD5P0.4-0.1-C2.5-P
Coaxial cableNo#47APD5P0.4-0.1-C0-L
Yes#48APD5P0.4-0.1-C2.5-L
500Vdc/
200μA		12Vdc
PinNo#49APD12N0.5-0.1-C0-P
Yes#50APD12N0.5-0.1-C2.5-P
Coaxial cableNo#51APD12N0.5-0.1-C0-L
Yes#52APD12N0.5-0.1-C2.5-L
十PinNo#53APD12P0.5-0.1-C0-P
Yes#54APD12P0.5-0.1-C2.5-P
Coaxial cableNo#55APD12P0.5-0.1-C0-L
Yes#56APD12P0.5-0.1-C2.5-L
5Vdc
PinNo#57APD5N0.5-0.1-C0-P
Yes#58APD5N0.5-0.1-C2.5-P
Coaxial cableNo#59APD5N0.5-0.1-C0-L
Yes#60APD5N0.5-0.1-C2.5-L
十PinNo#61APD5P0.5-0.1-C0-P
Yes#62APD5P0.5-0.1-C2.5-P
Coaxial cableNo#63APD5P0.5-0.1-C0-L
Yes#64APD5P0.5-0.1-C2.5-L
