Q-Tech具有4点安装5x7晶体振荡器

发布时间：2021-05-10 17:13:32 浏览：1191

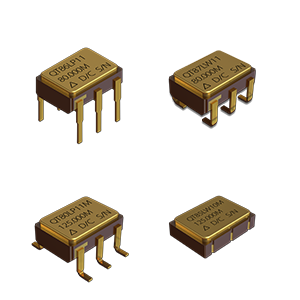

Q-Tech的5X7mm含有4点安装晶体振荡器，在极其小的封装中提供最先进性的冲击和振动灵敏度。Q-Tech振荡器采用4点晶体安装，这也是空间应用所必需的（至少3点）。

深圳市3118云顶集团创展科技有限公司授权代理销售Q-TECH产品，备件现货，欢迎与业界同行合作。

详情了解Q-Tech请点击： http : /public/brand/60.html

或联系我们的销售工程师： 0755- 83642657 QQ： 2295048674

Package	Dimensions (mm)	Market	Device Type	Logic Type	Supply Voltage	Package Type	Stability	Phase Noise Floor
QT180, QT181, QT182, QT183, QT184, QT185, QT186, QT187, QS180, QS181, QS182, QS183, QS184, QS185, QS186, QS187	5.00 x 7.00	Space	5x7 w/ 4pt Mount	ACMOS, HCMOS, LVCMOS, TTL, LVDS, LVPECL	2.5 to 5.0Vdc	5 x 7mm 4-Point Mount	±25ppm to ±100ppm	Contact Q-Tech
QT80F, QT81F, QT82F, QT83F, QT84F, QT85F, QT86F, QT87F, QS80F, QS81F, QS82F, QS83F, QS84F, QS85F, QS86F, QS87F, QG80F, QG81F, QG82F, QG83F, QG84F, QG85F, QG86F, QG87F	5.00 x 7.00 x 2.00	Military & Avionics	5x7 w/ 4pt Mount	CMOS, HCMOS, TTL	1.8 to 5Vdc	Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 4 Pin	±50ppm to ±100ppm	-162 dBc/Hz @ 40MHz
QT81, QS81	5.00 x 7.00 x 2.00	High Temp	5x7 w/ 4pt Mount	CMOS, LVHCMOS, TTL	1.8 to 5Vdc	Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 4 Pin	±175ppm to ±450ppm	Contact Q-Tech
QT86	5.00 x 7.00 x 2.00	High Temp	5x7 w/ 4pt Mount	CMOS, LVHCMOS, TTL	1.8 to 5Vdc	Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin	±175ppm to ±450ppm	Contact Q-Tech
QT80F, QT85F, QT86F, QT87F, QS80F, QS85F, QS86F, QS87F,	5.00 x 7.00 x 2.00	Military & Avionics	5x7 w/ 4pt Mount	LVDS, LVPECL	2.5 to 3.3Vdc	Surface Mount (Miniature SMD) 5 x 7mm Thru Hole 6 Pin	±50ppm to ±100ppm	-143 dBc/Hz @ 125MHz
