R5F12068MSP#30通用MCU微控制器Renesas
发布时间：2024-07-29 09:33:40 浏览：590

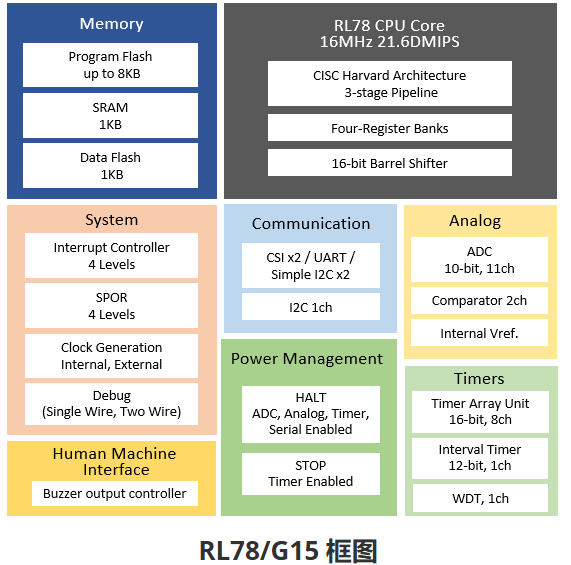

R5F12068MSP#30是Renesas公司的RL78/G15系列微控制器中的一种通用MCU。以下是其主要特性和参数：
低功耗技术
单电源工作电压：2.4 V 至 5.5 V
HALT模式
STOP模式
RL78 CPU核心
CISC架构，3级流水线
最小指令执行时间：66 ns (高速片上振荡器下)
操作频率：最大20 MHz
中断源：12个
通用寄存器：8位寄存器 x 8 个
存储器
闪存：4 KB至8 KB
RAM：1 KB
编程：在停止模式下可进行自编程和背景操作
振荡器
选择范围：16 MHz、8 MHz、4 MHz、2 MHz和1 MHz
时钟特性
时钟源：1个内部高速、1个内部低速和1个外部低速
可编程时钟输出
工作温度范围
消费应用：-40°C 至 +85°C
工业应用：-40°C 至 +105°C
扩展工业应用：-40°C 至 +125°C
电源管理和复位功能
片上可选择的断电复位电路
串行接口
简化SPI：1/2通道
UART：1通道
I?C：1/2通道
定时器
16位定时器：8个通道
12位区间定时器：1个通道
看门狗定时器：1个
A/D转换器
精度：8/10位
输入通道数：11至16通道
内部基准电压：0.815 V
比较器
1或2通道
操作模式：高速模式、低速模式
参考电压：外部参考
I/O端口
18个I/O口，支持开漏和片上拉电阻
其他
BCD校正电路
该微控制器适用于需要低功耗和高效能的小型嵌入式系统，如家电控制、便携式设备、传感器接口等。
型号：
| Product ID | 程序存储器 （KB） | 内存 （KB） | 温度范围 | 中央处理器 | 数据闪存 （KB） | 电源电压 （V） | 工作频率（最大值） （MHz） | 产品尺寸 （mm） |
| R5F12068MSP#30 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12017ASP#10 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017ASP#30 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017ASP#50 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017GSP#10 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017GSP#30 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017GSP#50 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017MSP#10 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017MSP#30 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017MSP#50 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018ASP#10 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018ASP#30 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018ASP#50 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018GSP#10 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018GSP#30 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018GSP#50 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018MSP#10 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018MSP#30 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018MSP#50 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12047ASP#10 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047ASP#30 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047ASP#50 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047GSP#10 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047GSP#30 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047GSP#50 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047MSP#10 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047MSP#30 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047MSP#50 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048ASP#10 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048ASP#30 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048ASP#50 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048GSP#10 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048GSP#30 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048GSP#50 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048MSP#10 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048MSP#30 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048MSP#50 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12067ASP#30 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12067ASP#50 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12067GSP#30 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12067GSP#50 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12067MSP#30 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12067MSP#50 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12068ASP#30 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12068ASP#50 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12068GSP#30 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12068GSP#50 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12068MSP#50 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12007ANS#10 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007ANS#30 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007ANS#50 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007GNS#10 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007GNS#50 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007MNS#10 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007MNS#30 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007MNS#50 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008ANS#10 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008ANS#30 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008ANS#50 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008GNS#10 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008GNS#50 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008MNS#10 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008MNS#30 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047ANA#00 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047ANA#20 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047GNA#00 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047GNA#20 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047GNA#40 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047MNA#00 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047MNA#20 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047MNA#40 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048ANA#00 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048ANA#20 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048ANA#40 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048GNA#20 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048GNA#40 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048MNA#00 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048MNA#20 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048MNA#40 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007GNS#30 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008GNS#30 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008MNS#50 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048GNA#00 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047ANA#40 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12017ASP#70 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12017GSP#70 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12017MSP#70 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12018ASP#70 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12018GSP#70 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12018MSP#70 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12047ASP#70 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12047GSP#70 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12047MSP#70 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12048ASP#70 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12048GSP#70 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12048MSP#70 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12007ANS#70 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12007GNS#70 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12007MNS#70 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12008ANS#70 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12008GNS#70 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12008MNS#70 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12047ANA#60 | 4 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12047GNA#60 | 4 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12047MNA#60 | 4 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12048ANA#60 | 8 | 1 | -40 to 85°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12048GNA#60 | 8 | 1 | -40 to 105°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
| R5F12048MNA#60 | 8 | 1 | -40 to 125°C | RL78 | 1 | 2.4 - 5.5 | 16 |
|
