Murata村田DCDC电源模块国产替代：Leadway电源模块的崛起
发布时间：2024-12-17 09:08:25 浏览：789
在全球化的电子市场中，Murata村田作为日本著名的电子元件制造商，其DCDC电源模块因其高性能和可靠性而广受市场欢迎，但是目前Murata村田电源模块很多已经停产，而国内电源模块也在崛起，Leadway电源模块可成为村田产品的有力替代品，主要有以下几点优势：
1.性能高。Leadway电源模块在输入电压、输出电压、输出电流、尺寸、温度范围和封装等方面均与Murata村田电源模块相匹配，其稳定性、效率、保护功能、可靠性、尺寸和重量等方面均进行了优化。
2.价格优势。Leadway国产电源模块在价格上具有明显优势，此外，国内供应链的完善也有助于降低物流和库存成本。
3.市场前景。国产电源模块技术创新可以满足用户对高性能、高可靠性和节能环保的需求，推动模块电源市场的增长。
相关型号参数及替代方案如下：
| Leadway型号 | 可替代Murata村田型号 | Iout(A) | Vin(V) | Vout (V) | 尺寸(mm) | 工作温度 | 封装 |
| LWI-78SR-12/1.0-W36-C | OKI-78SR-12/1.0-W36-C | 1A | 15V ~ 36V | 12V | 10.4mm*8.64mm*16.5mm | -40℃ ~ 85℃ | SIP |

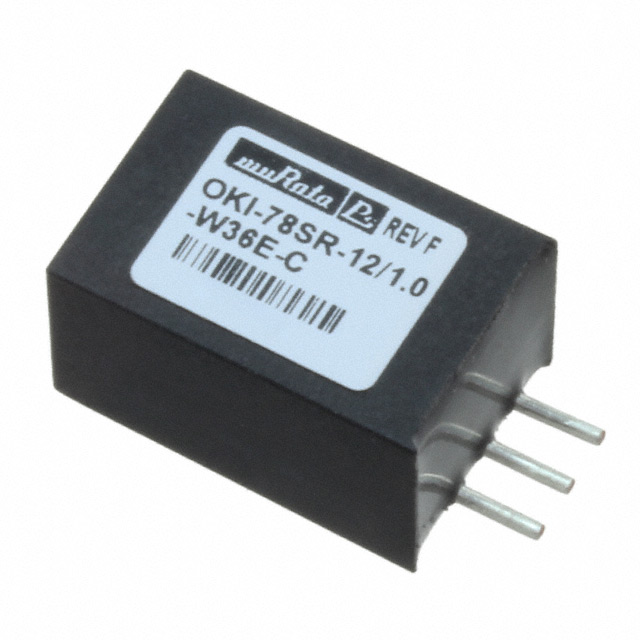

| LWI-78SR-12/1.0-W36E-C | OKI-78SR-12/1.0-W36E-C | 1A | 15V ~ 36V | 12V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-12/1.0-W36H-C | OKI-78SR-12/1.0-W36H-C | 1A | 15V ~ 36V | 12V | 16.5mm*10.4mm*8.64mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-12/1.0-W36HE-C | OKI-78SR-12/1.0-W36HE-C | 1A | 15V ~ 36V | 12V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-3.3/1.5-W36-C | OKI-78SR-3.3/1.5-W36-C | 1.5A | 7V ~ 36V | 3.3V | 10.4mm*8.64mm*16.5mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-3.3/1.5-W36E-C | OKI-78SR-3.3/1.5-W36E-C | 1.5A | 7V ~ 36V | 3.3V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-3.3/1.5-W36H-C | OKI-78SR-3.3/1.5-W36H-C | 1.5A | 7V ~ 36V | 3.3V | 16.5mm*10.4mm*8.64mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-3.3/1.5-W36HE-C | OKI-78SR-3.3/1.5-W36HE-C | 1.5A | 7V ~ 36V | 3.3V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-5/1.5-W36-C | OKI-78SR-5/1.5-W36-C | 1.5A | 7V ~ 36V | 5V | 10.4mm*8.64mm*16.5mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-5/1.5-W36E-C | OKI-78SR-5/1.5-W36E-C | 1.5A | 7V ~ 36V | 5V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-5/1.5-W36H-C | OKI-78SR-5/1.5-W36H-C | 1.5A | 7V ~ 36V | 5V | 16.5mm*10.4mm*8.64mm | -40℃ ~ 85℃ | SIP |
| LWI-78SR-5/1.5-W36HE-C | OKI-78SR-5/1.5-W36HE-C | 1.5A | 7V ~ 36V | 5V | 11.9mm*10.0mm*17.6mm | -40℃ ~ 85℃ | SIP |
| LWI-T/36W-W40N-C | OKI-T/36W-W40N-C | 3A | 19V ~ 40V | 5.021V ~ 15.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWI-T/36W-W40P-C | OKI-T/36W-W40P-C | 3A | 19V ~ 40V | 5.021V ~ 15.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWI-T/3-W32N-C | OKI-T/3-W32N-C | 3A | 9V ~ 32V | 0.7525V ~ 4.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWI-T/3-W32P-C | OKI-T/3-W32P-C | 3A | 9V ~ 32V | 0.7525V ~ 4.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWI-T/3-W40N-C | OKI-T/3-W40N-C | 3A | 16V ~ 40V | 0.75V ~ 5.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWI-T/3-W40P-C | OKI-T/3-W40P-C | 3A | 16V ~ 40V | 0.75V ~ 5.5V | 11.9mm*20.8mm*8.5mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/12-W12N2-C | OKL2-T/12-W12N2-C | 12A | 4.5V ~ 14V | 0.69V ~ 5.5V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/12-W12P2-C | OKL2-T/12-W12P2-C | 12A | 4.5V ~ 14V | 0.69V ~ 5.5V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/12-W5N-C | OKL2-T/12-W5N-C | 12A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/12-W5P-C | OKL2-T/12-W5P-C | 12A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/20-W12N2-C | OKL2-T/20-W12N2-C | 20A | 4.5V ~ 14V | 0.69V ~ 5.5V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/20-W12P2-C | OKL2-T/20-W12P2-C | 20A | 4.5V ~ 14V | 0.69V ~ 5.5V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/20-W5N-C | OKL2-T/20-W5N-C | 20A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/20-W5P-C | OKL2-T/20-W5P-C | 20A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/3-W5N-C | OKL2-T/3-W5N-C | 3A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*6.2mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/3-W5P-C | OKL2-T/3-W5P-C | 3A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*6.2mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/6-W5N-C | OKL2-T/6-W5N-C | 6A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*7.2mm | -40℃ ~ 85℃ | SMD |
| LWL2-T/6-W5P-C | OKL2-T/6-W5P-C | 6A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*7.2mm | -40℃ ~ 85℃ | SMD |
| LWL-T/12-W5N-C | OKL-T/12-W5N-C | 12A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL-T/12-W5P-C | OKL-T/12-W5P-C | 12A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 20.32mm*11.43mm*8.55mm | -40℃ ~ 85℃ | SMD |
| LWL-T/1-W12N-C | OKL-T/1-W12N-C | 1A | 2.9V ~ 14V | 0.9V ~ 5.5V | 12.4mm*12.4mm*4.57mm | -40℃ ~ 85℃ | SMD |
| LWL-T/1-W12P-C | OKL-T/1-W12P-C | 1A | 2.9V ~ 14V | 0.9V ~ 5.5V | 12.4mm*12.4mm*4.57mm | -40℃ ~ 85℃ | SMD |
| LWL-T/20-W5N-C | OKL-T/20-W5N-C | 20A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL-T/20-W5P-C | OKL-T/20-W5P-C | 20A | 2.4V ~ 5.5V | 0.6V ~ 3.63V | 33.02mm*13.46mm*8.75mm | -40℃ ~ 85℃ | SMD |
| LWL-T/3-W5N-C | OKL-T/3-W5N-C | 3A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*6.2mm | -40℃ ~ 85℃ | SMD |
| LWL-T/3-W5P-C | OKL-T/3-W5P-C | 3A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*6.2mm | -40℃ ~ 85℃ | SMD |
| LWL-T/6-W5N-C | OKL-T/6-W5N-C | 6A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*7.2mm | -40℃ ~ 85℃ | SMD |
| LWL-T/6-W5P-C | OKL-T/6-W5P-C | 6A | 2.4V ~ 6V | 0.6V ~ 3.3V | 12.2mm*12.2mm*7.2mm | -40℃ ~ 85℃ | SMD |
| LWX2-T/10-D12N-C | OKX2-T/10-D12N-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/10-D12P-C | OKX2-T/10-D12P-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/10-W5N-C | OKX2-T/10-W5N-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/10-W5P-C | OKX2-T/10-W5P-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/16-D12N-C | OKX2-T/16-D12N-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/16-D12P-C | OKX2-T/16-D12P-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/16-W5N-C | OKX2-T/16-W5N-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX2-T/16-W5P-C | OKX2-T/16-W5P-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/10-D12N-C | OKX-T/10-D12N-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/10-D12P-C | OKX-T/10-D12P-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/10-W5N-C | OKX-T/10-W5N-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/10-W5P-C | OKX-T/10-W5P-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/16-D12N-C | OKX-T/16-D12N-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/16-D12P-C | OKX-T/16-D12P-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 12.7mm*50.8mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/16-W5N-C | OKX-T/16-W5N-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/16-W5P-C | OKX-T/16-W5P-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 50.8mm*12.7mm*9.4mm | -40℃ ~ 85℃ | SIP |
| LWX-T/3-D12N-C | OKX-T/3-D12N-C | 3A | 8.3V ~ 13.8V | 0.75V ~ 5.5V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWX-T/3-D12P-C | OKX-T/3-D12P-C | 3A | 8.3V ~ 13.8V | 0.75V ~ 5.5V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWX-T/5-D12N-C | OKX-T/5-D12N-C | 5A | 8.3V ~ 13.8V | 0.75V ~ 5.5V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWX-T/5-D12P-C | OKX-T/5-D12P-C | 5A | 8.3V ~ 13.8V | 0.75V ~ 5.5V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWX-T/5-W5N-C | OKX-T/5-W5N-C | 5A | 2.4V ~ 5.5V | 0.7525V ~ 3.6V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWX-T/5-W5P-C | OKX-T/5-W5P-C | 5A | 2.4V ~ 5.5V | 0.7525V ~ 3.6V | 10.16mm*22.86mm*7.163mm | -40℃ ~ 85℃ | SIP |
| LWY2-T/10-D12N-C | OKY2-T/10-D12N-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/10-D12P-C | OKY2-T/10-D12P-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/10-W5N-C | OKY2-T/10-W5N-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 35.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/10-W5P-C | OKY2-T/10-W5P-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 36.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/16-D12N-C | OKY2-T/16-D12N-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/16-D12P-C | OKY2-T/16-D12P-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/16-W5N-C | OKY2-T/16-W5N-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 35.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY2-T/16-W5P-C | OKY2-T/16-W5P-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 36.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY-T/10-D12N-C | OKY-T/10-D12N-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY-T/10-D12P-C | OKY-T/10-D12P-C | 10A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY-T/10-W5N-C | OKY-T/10-W5N-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 33.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY-T/10-W5P-C | OKY-T/10-W5P-C | 10A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 34.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY-T/16-D12N-C | OKY-T/16-D12N-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY-T/16-D12P-C | OKY-T/16-D12P-C | 16A | 8.3V ~ 14V | 0.75V ~ 5.5V | 33.0mm*13.5mm*8.4mm | -40℃ ~ 85℃ | SMD |
| LWY-T/16-W5N-C | OKY-T/16-W5N-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 33.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY-T/16-W5P-C | OKY-T/16-W5P-C | 16A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 34.0mm*13.5mm*8.3mm | -40℃ ~ 85℃ | SMD |
| LWY-T/3-D12N-C | OKY-T/3-D12N-C | 3A | 8.3V ~ 14V | 0.75V ~ 5.5V | 11.9mm*20.8mm*7.1mm | -40℃ ~ 85℃ | SMD |
| LWY-T/3-D12P-C | OKY-T/3-D12P-C | 3A | 8.3V ~ 14V | 0.75V ~ 5.5V | 11.9mm*20.8mm*7.1mm | -40℃ ~ 85℃ | SMD |
| LWY-T/3-W5N-C | OKY-T/3-W5N-C | 3A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 11.9mm*20.8mm*7.0mm | -40℃ ~ 85℃ | SMD |
| LWY-T/3-W5P-C | OKY-T/3-W5P-C | 3A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 11.9mm*20.8mm*7.0mm | -40℃ ~ 85℃ | SMD |
| LWY-T/5-D12N-C | OKY-T/5-D12N-C | 5A | 8.3V ~ 14V | 0.75V ~ 5.5V | 11.9mm*20.8mm*7.1mm | -40℃ ~ 85℃ | SMD |
| LWY-T/5-D12P-C | OKY-T/5-D12P-C | 5A | 8.3V ~ 14V | 0.75V ~ 5.5V | 11.9mm*20.8mm*7.1mm | -40℃ ~ 85℃ | SMD |
| LWY-T/5-W5N-C | OKY-T/5-W5N-C | 5A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 11.9mm*20.8mm*7.0mm | -40℃ ~ 85℃ | SMD |
| LWY-T/5-W5P-C | OKY-T/5-W5P-C | 5A | 2.4V ~ 5.5V | 0.75V ~ 3.63V | 11.9mm*20.8mm*7.0mm | -40℃ ~ 85℃ | SMD |
